Description & Applications:

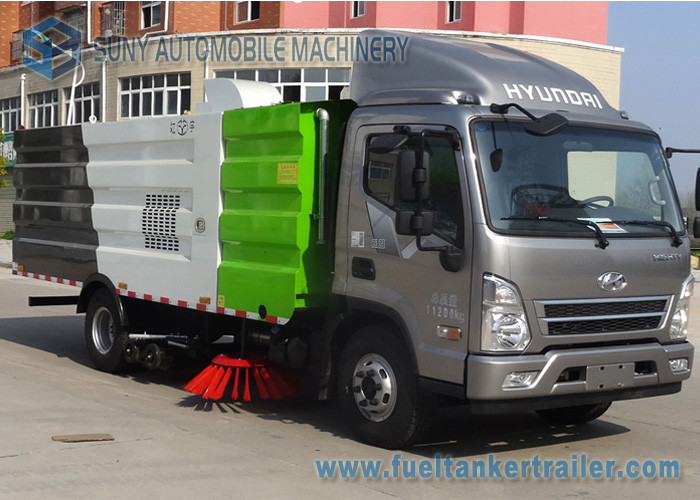

HYUNDAI 8000L washing Sweeper truck as one of the sanitation equipment, it's a new type of high efficiency sweeping equipment , with the functions of street surface cleaning, garbage collection and transportation. It is 4x2 drive type road sweeper truck , two brush and vacuum suction to sweep ,
8000L road washing sweeper truck , HYUNDAI chassis , commins 115hp engine , 4000L water tank , 4000L garbage tank , working speed is 3-25 kw/h , sweeping capacity is 70000M2/h.
Sweeper truck can an be widely used in trunk roads, municipal and airport pavement, urban residential areas, parks and other road cleaning.Road sweeper truck not only can clean the garbage, but also can decontaminate the air medium on the road,to ensure the beauty of the road, maintain the sanitation of the environment and maintain the good working condition of the road.
Power transmit system:Road sweeper truck have an auxiliary engine which can offer power for fan and hydraulic oil pump.Fan supply suction power for the suction system ,hydraulic oil pump complete the lift of van box and switching of rear door.
Suction system: the operating system of road sweeping truck, rear dust absorption plate absorb the rubbish on the ground.The height can be adjust according to requirement.
Hydraulic system:hydraulic oil pump,hydraulic motor,hydraulic cylinder,overflow valve,electromagnetic valve, throttle valve,hydraulic valve,hand valve,connect pipe etc.
Competitive Advantage:
1. Factory direct sales, fast delivery
2. High Quality, good performance
3. 12 months warranty, main beam whole life time grantee
4. sale truck for 10 years.
5. ISO, CCC, SGS, BV certificates
Technical Specification :
| Overall | model | HYUNDAI washing sweeper truck |
| dimensions | 7150*2250*2780mm |
| total weight | 11200kg |
| curb weight | 6450kg |
| Chassis | brand | HYUNDAI |
| cabin | Tusheng |
| wheelbase | 3850mm |
| engine power | commins 115hp (Euro 5) |
| tyre | 8.25R16 |
| upper structure | auxiliary engine | commins 140hp |
| water tank | 4m³ |
| garbage tank | 4m³ |
| cleaning width | 3.2m |
| working speed | 3-25km/h |
| pressure of the high pressure pump | 12mpa |
| flow speed of the high pressure pump | 115L/min |
| sweeping capacity | 70000㎡/h |
| garbage tank lifting angle | ≥48° |
| low pressure washing width | 20m |
More Details Pictures Show :
